Nissan Murano: Suspension / Front Suspension :: Service Data and Specifications (sds). Service Data and Specifications (sds)

Nissan Murano (Z52) 2015-2024 Service Manual / Suspension / Front Suspension :: Service Data and Specifications (sds). Service Data and Specifications (sds)

Wheel Alignment (Unladen)

Measurement wheel (LH) side (RH) side

Camber

Degree minute (Decimal degree) 		Minimum –1° 04′ 30″ (–1.075°)
Nominal –0° 15′ 00″ (–0.25°)
Maximum 0° 34′ 30″ (0.575°)
Difference (LH-RH) 0° 0′±0° 33′ (0°±0.55°)

Caster

Degree minute (Decimal degree) 		Minimum 3° 51′ 00″ (3.85°)
Nominal 4° 45′ 00″ (4.75°)
Maximum 5° 39′ 00″ (5.65°)
(LH) and (RH) difference 0°30′ (0.50°) Maximum

Kingpin inclination

Degree minute (Decimal degree) 		Minimum 12° 00′ (12.00°) 12° 15′ (12.25°)
Nominal 12° 45′ (12.75°) 13° 00′ (13.00°)
Maximum 13° 30′ (13.50°) 13° 45′ (13.75°)


Total toe-in Distance (A - B) Minimum Out 0.6 mm (Out 0.024 in)
Nominal In 1.4 mm (In 0.055 in)
Maximum In 3.4 mm (In 0.134 in)

Angle (LH) and (RH)

Degree minute

(Decimal degree) 		Minimum Out 0° 06′ 00″ (Out 0.10°)
Nominal In 0° 06′ 00″ (In 0.10°)
Maximum In 0° 18′ 00″ (In 0.30°)

Measure value under unladen* conditions.

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Ball Joint
Item Standard
Swinging torque Transverse link 0.5 – 4.9 N·m (0.05 – 0.50 kg-m, 4 – 43 in-lb)
Rotating torque Transverse link 0.5 – 4.9 N·m (0.05 – 0.50 kg-m, 4 – 43 in-lb)

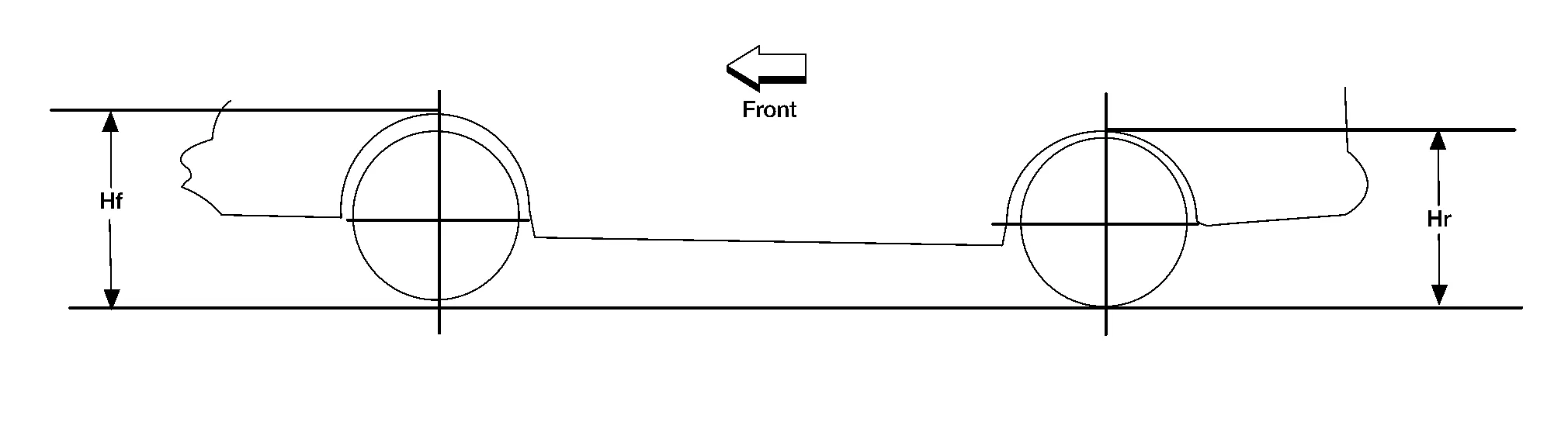

Wheelarch Height (Unladen)

UNITED STATES

Tire size 235/65R18 235/55R20
Front (Hf) 835 mm (32.87 in) 834 mm (32.83 in)
Rear (Hr) 824 mm (32.44 in) 822 mm (32.36 in)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

CANADA

Tire size 235/65R18 235/55R20
Front (Hf) 836 mm (32.91 in) 834 mm (32.83 in)
Rear (Hr) 824 mm (32.44 in) 822 mm (32.36 in)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

    Front Suspension :: Unit Disassembly and Assembly. Front Coil Spring and Strut

    Exploded View 1. Piston rod lock nut 2. Strut mount insulator 3. Strut mount bearing 4. Front coil spring 5. Bound bumper 6. Lower rubber seat 7...
