Nissan Murano: Transmission & Driveline / Front Axle :: Service Data and Specifications (sds). Service Data and Specifications (sds)

Nissan Murano (Z52) 2015-2024 Service Manual / Transmission & Driveline / Front Axle :: Service Data and Specifications (sds). Service Data and Specifications (sds)

Wheel Bearing

Item	Standard
Axial end play	0.05 mm (0.002 in) or less

Drive Shaft


Joint type	Wheel side	Transaxle side
Grease quantity	115 ± 10 g (4.06 ± 0.35 oz)	190 ± 10 g (6.70 ± 0.35 oz)

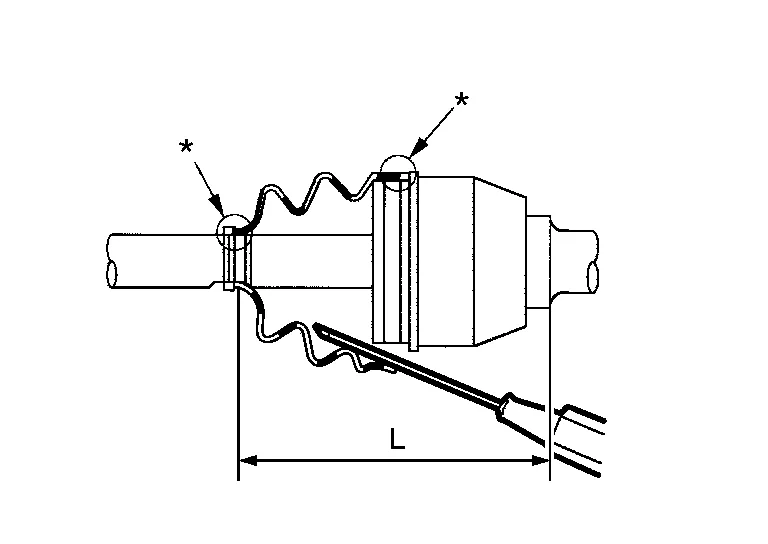

Boot installed length (L)	135.1 mm (5.32 in)	177.9 mm (7.00 in)

* : Boot installation grooves

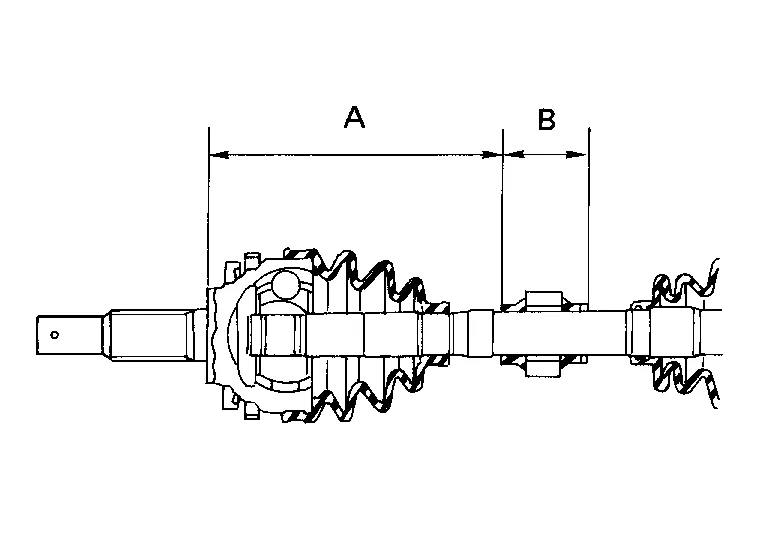

Dynamic Damper


	FWD
	LH	RH
Dimension (A)	228.5 ± 3 mm (9.00 ± 0.12 in)	205± 3 mm (8.07 ± 0.12 in)
Dimension (B)	70 mm (2.76 in)	70 mm (2.76 in)
	AWD
	LH	RH
Dimension (A)	228.5 ± 3 mm (9.00 ± 0.12 in)	227.5 ± 3 mm (8.96 ± 0.12 in)
Dimension (B)	70 mm (2.76 in)	70 mm (2.76 in)

Boot Bands


Dimension (M)	1.0 - 4.0 mm (0.039 - 0.157 in)
