GENERAL SPECIFICATIONS
| Cylinder arrangement | V-6 | ||||
| Displacement cm3 (cu in) | 3,498 (213.45) | ||||
| Bore and stroke mm (in) | 96 x 81 (3.780 x 3.189) | ||||
| Valve arrangement | DOHC | ||||
| Firing order | 1-2-3-4-5-6 | ||||
| Number of piston rings | Compression | 2 | |||
| Oil | 1 | ||||
| Number of main bearings | 4 | ||||
| Compression ratio | 10.3:1 | ||||
| Compression pressure kPa (kg/cm2, psi)/300 rpm | Standard | 1,275 (12.75, 13.0, 185) | |||
| Minimum | 981 (9.81, 10.0, 142) | ||||
| Differential limit between cylinders | 98 (0.98, 1.0, 14) | ||||

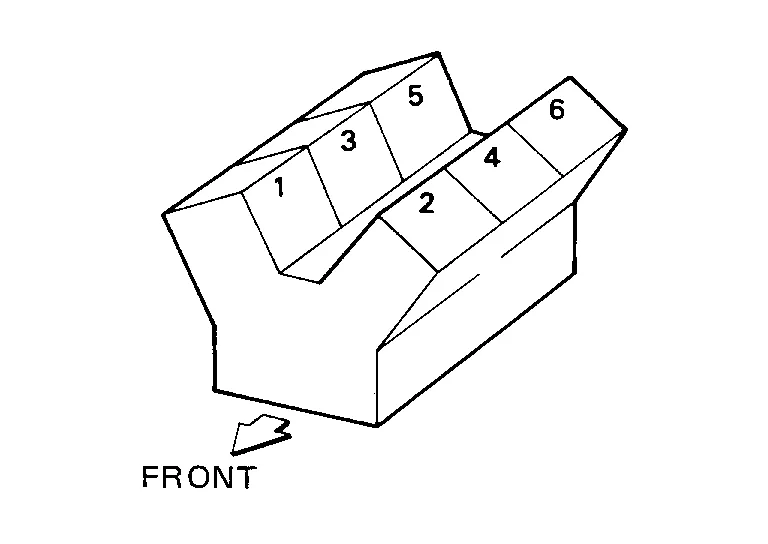

| Cylinder number |
|
||||
|

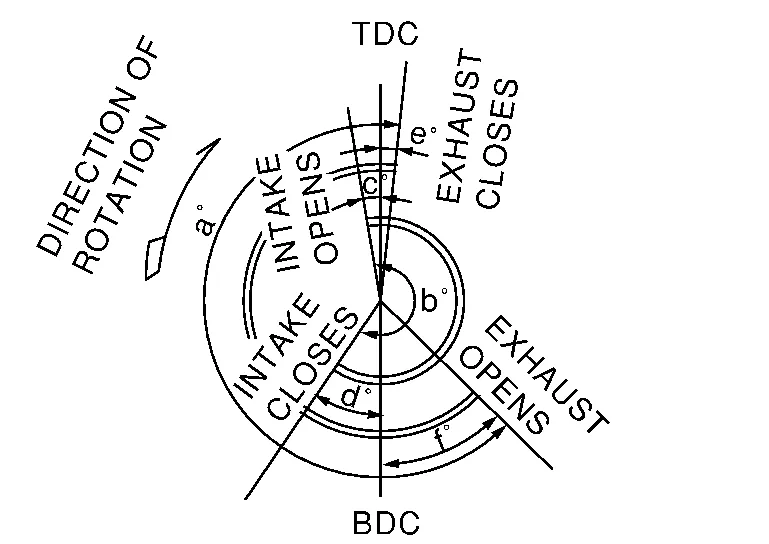

Valve timing (Valve timing control - “OFF”) |
|
||||
| Unit: degree | |||||
| a | b | c | d | e | f |
| 240 | 240 | −10 | 70 | 10 | 50 |
DRIVE BELT
| Tension of drive belt | Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner. |
SPARK PLUG
Unit: mm (in)
| Make | DENSO | |
| Standard type* | FXE22HR11 | |
| Gap | Standard | 1.1 (0.043) |
*: Always check with the Parts Department for the latest parts information.
INTAKE MANIFOLD
Unit: mm (in)
| Items | Limit | |
| Surface distortion | Intake manifold | 0.1 (0.004) |
EXHAUST MANIFOLD
Unit: mm (in)
| Items | Limit | |
| Surface distortion | Exhaust manifold | 0.3 (0.012) |
CAMSHAFT
Unit: mm (in)
|
|
|||||
| Items | Standard | Limit | |||
| Camshaft journal oil clearance | No. 1 | 0.045 - 0.086 (0.0018 - 0.0034) | 0.15 (0.0059) | ||
| No. 2, 3, 4 | 0.035 - 0.076 (0.0014 - 0.0030) | ||||
| Camshaft bracket inner diameter | No. 1 | 26.000 - 26.021 (1.0236 - 1.0244) | — | ||
| No. 2, 3, 4 | 23.500 - 23.521 (0.9252 - 0.9260) | — | |||
| Camshaft journal diameter | No. 1 | 25.935 - 25.955 (1.0211 - 1.0218) | — | ||
| No. 2, 3, 4 | 23.445 - 23.465 (0.9230 - 0.9238) | — | |||
| Camshaft end play | 0.115 - 0.188 (0.0045 - 0.0074) | 0.24 (0.0094) | |||

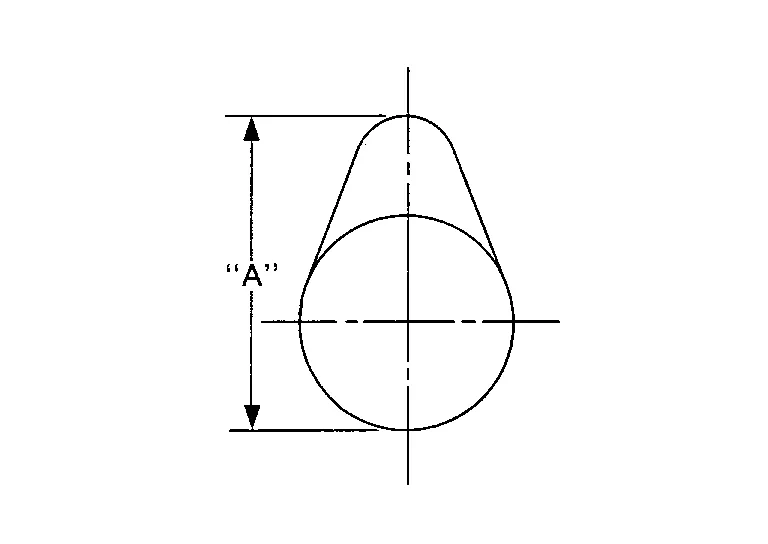

| Camshaft lobe height “A” | Intake | 45.475 - 45.665 (1.7904 - 1.7978) | 0.2 (0.008)*1 | ||
| Exhaust | 45.485 - 45.675 (1.7907 - 1.7982) | 0.2 (0.008)*1 | |||
| Camshaft runout [TIR*2] | Less than 0.02 (0.0008) | 0.05 (0.0020) | |||
| Camshaft sprocket runout [TIR*2] | Less than 0.15 (0.0059) | — | |||
*1: Cam wear limit
*2: Total indicator reading
VALVE LIFTER
Unit: mm (in)
| Items | Standard |
| Valve lifter outer diameter | 33.977 - 33.987 (1.3377 - 1.3381) |
| Valve lifter bore diameter | 34.000 - 34.016 (1.3386 - 1.3392) |
| Valve lifter clearance | 0.023 - 0.029 (0.0009 - 0.0011) |
VALVE CLEARANCE
Unit: mm (in)
| Items | Cold | Hot* (reference data) |
| Intake | 0.26 - 0.34 (0.010 - 0.013) | 0.304 - 0.416 (0.012 - 0.016) |
| Exhaust | 0.29 - 0.37 (0.011 - 0.015) | 0.308 - 0.432 (0.012 - 0.017) |
*: Approximately 80°C (176°F)

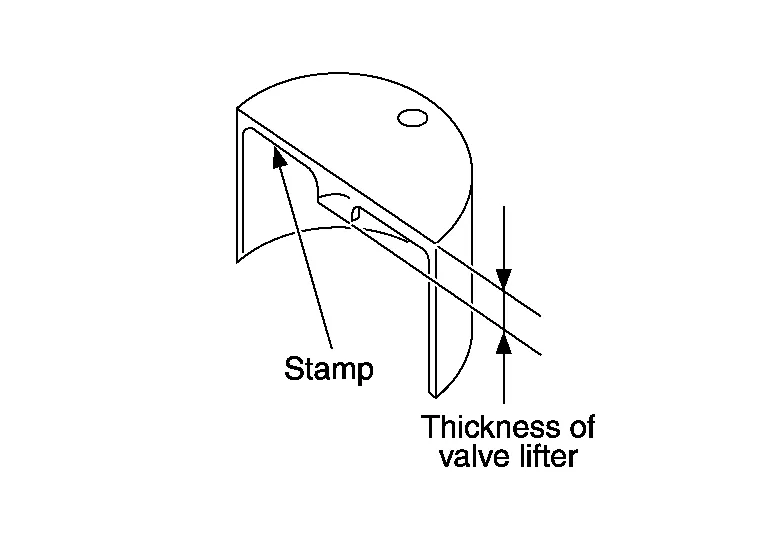

AVAILABLE VALVE LIFTER
Unit: mm (in)
|
|
|---|
| Thickness |
| 3.00 (0.1181) |
| 3.02 (0.1189) |
| 3.04 (0.1197) |
| 3.06 (0.1205) |
| 3.08 (0.1213) |
| 3.10 (0.1220) |
| 3.12 (0.1228) |
| 3.14 (0.1236) |
| 3.16 (0.1244) |
| 3.18 (0.1252) |
| 3.20 (0.1260) |
| 3.22 (0.1268) |
| 3.24 (0.1276) |
| 3.26 (0.1283) |
| 3.28 (0.1291) |
| 3.30 (0.1299) |
| 3.32 (0.1307) |
| 3.34 (0.1315) |
| 3.36 (0.1323) |
| 3.38 (0.1331) |
| 3.40 (0.1339) |
| 3.42 (0.1346) |
| 3.44 (0.1354) |
| 3.46 (0.1362) |
| 3.48 (0.1370) |
| 3.50 (0.1378) |
*: Always check with the Parts Department for the latest parts information.

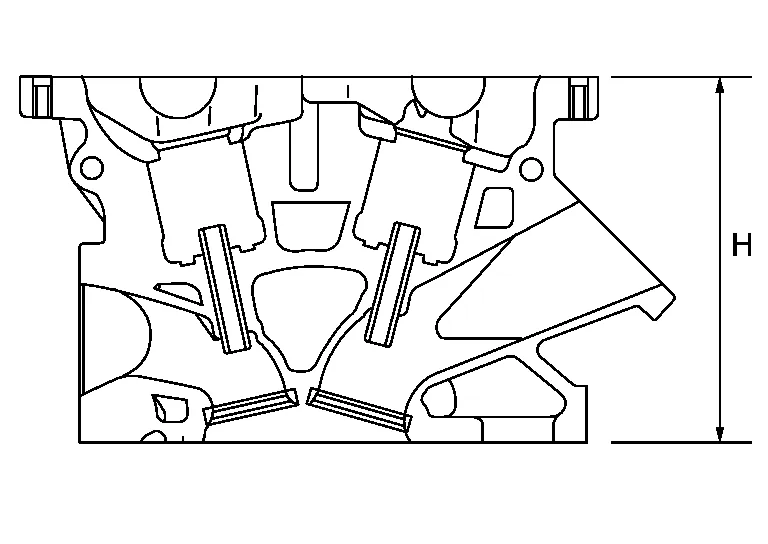

CYLINDER HEAD
Unit: mm (in)
|
| ||
|---|---|---|
| Items | Standard | Limit |
| Head surface distortion | Less than 0.03 (0.0012) | 0.1 (0.004) |
| Normal cylinder head height (H) | 126.4 (4.98) | — |
| Spark plug tube installation height | 38.2 +0.5/- 0.5 (1.5 +0.020 / -0.020) | — |

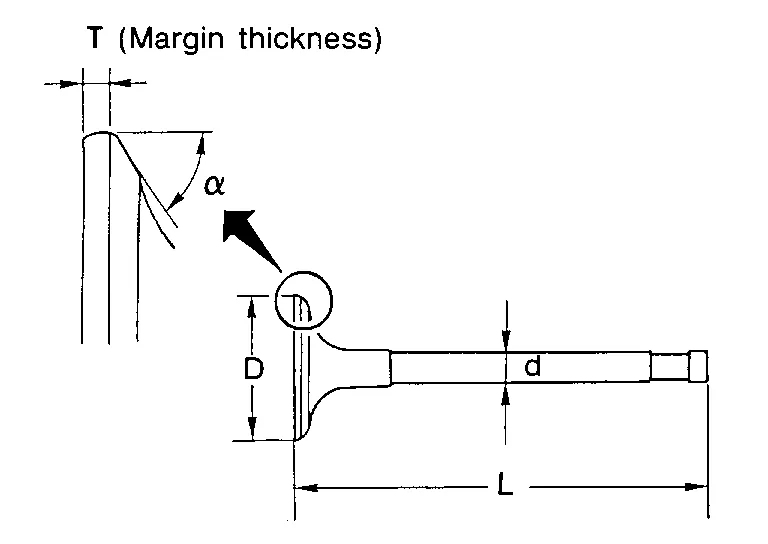

VALVE DIMENSIONS
Unit: mm (in)
|
|
||
| Valve head diameter (D) | Intake | 36.6 - 36.9 (1.441 - 1.453) |
| Exhaust | 30.2 - 30.5 (1.189 - 1.201) | |
| Valve length (L) | Intake | 102.02 (4.0165) |
| Exhaust | 99.56 (3.9197) | |
| Valve stem diameter (d) | Intake | 5.965 - 5.980 (0.2348 - 0.2354) |
| Exhaust | 5.955 - 5.970 (0.2344 - 0.2350) | |
| Valve seat angle α) | Intake | 45°15′ - 45°45′ |
| Exhaust | ||
| Valve margin (T) | Intake | 1.15 - 1.45 (0.0453 - 0.0571) |
| Exhaust | 1.45 - 1.75 (0.0571 - 0.0689) | |
| Valve margin (T) limit | More than 0.5 (0.020) | |
| Valve stem end surface grinding limit | Less than 0.2 (0.008) | |
VALVE OIL SEAL
Unit: mm (in)
| Description | Standard |
| Valve oil seal installation height | 14.3 - 14.9 (0.563 - 0.587) |
VALVE GUIDE
Unit: mm (in)
|
|
|||
| Items | Standard | Oversize (Service) [0.2 (0.008)] | |
| Valve guide | Outer diameter | 10.023 - 10.034 (0.3946 - 0.3950) | 10.223 - 10.234 (0.4025 - 0.4029) |
| Inner diameter (Finished size) | 5.3 - 5.5 (0.2087 - 0.2165) | ||
| Cylinder head valve guide hole diameter | 9.975 - 9.996 (0.3927 - 0.3935) | 10.175 - 10.196 (0.4006 - 0.4014) | |
| Interference fit of valve guide | 0.027 - 0.059 (0.0011 - 0.0023) | ||
| Items | Standard | Limit | |
| Valve guide clearance | Intake | 0.020 - 0.053 (0.0008 - 0.0021) | 0.08 (0.0031) |
| Exhaust | 0.040 - 0.073 (0.0016 - 0.0029) | 0.01 (0.004) | |
|
Valve deflection |
Intake | — | 0.24 (0.0094) |
| Exhaust | — | 0.28 (0.0110) | |
| Projection length (L) | 12.6 - 12.8 (0.496 - 0.504) | ||

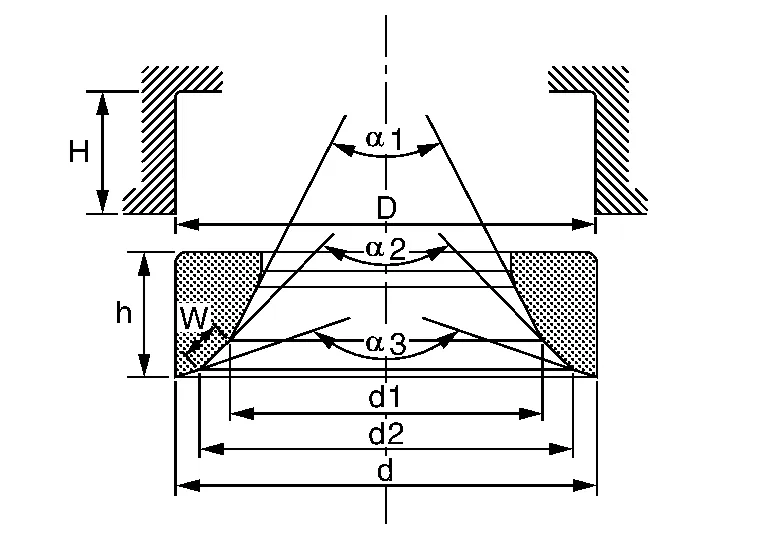

VALVE SEAT
Unit: mm (in)
|
|
|||
| Items | Standard | Oversize (Service) [0.5 (0.02)] | |
| Cylinder head seat recess diameter "D" | Intake | 38.000 - 38.016 (1.4961 - 1.4967) | 38.500 - 38.516 (1.5157 - 1.5164) |
| Exhaust | 31.600 - 31.616 (1.2441 - 1.2447) | 32.100 - 32.116 (1.2638 - 1.2644) | |
| Valve seat outer diameter "d" | Intake | 38.097 - 38.113 (1.4999 - 1.5005) | 38.597 - 38.613 (1.5196 - 1.5202) |
| Exhaust | 31.680 - 31.696 (1.2472 - 1.2479) | 32.180 - 32.196 (1.2669 - 1.2676) | |
| Valve seat interference fit | Intake | 0.081 - 0.113 (0.0032 - 0.0044) | |
| Exhaust | 0.064 - 0.096 (0.0025 - 0.0038) | ||
| Diameter "d1"*1 | Intake | 34.6 (1.362) | |
| Exhaust | 27.7 (1.091) | ||
| Diameter "d2"*2 | Intake | 35.9 - 36.4 (1.413 - 1.433) | |
| Exhaust | 29.3 - 29.8 (1.154 - 1.173) | ||
| Angle "α1" | Intake | 60° | |
| Exhaust | 60° | ||
| Angle "α2" | Intake | 88°45′ - 90°15′ | |
| Exhaust | 88°45′ - 90°15′ | ||
| Angle "α3" | Intake | 120° | |
| Exhaust | 120° | ||
| Contacting width "W"*3 | Intake | 1.0 - 1.4 (0.0394 - 0.0551) | |
| Exhaust | 1.2 - 1.6 (0.0472 - 0.0630) | ||
| Height "h" | Intake | 5.9 - 6.0 (0.232 - 0.236) | 5.0 - 5.1 (0.197 - 0.201) |
| Exhaust | 5.9 - 6.0 (0.232 - 0.236) | 4.9 - 5.0 (0.193 - 0.197) | |
| Depth "H" | Intake | 41.16 - 41.76 (1.6205 - 1.6441) | |
| Exhaust | 41.09 - 41.69 (1.6177 - 1.6413) | ||
*1: Diameter made by intersection point of conic angles "α1" and "α2"
*2: Diameter made by intersection point of conic angles "α2" and "α3"
*: Machining data
VALVE SPRING
| Items | Standard |
|---|---|
| Free height | 48.51 mm (1.9098 in) |
| Installation height | 38.66 mm (1.5220 in) |
| Installation load | 166 - 188 N (16.9 - 19.2 kg, 37.3 - 42.3 lb) |
| Height during valve open | 28.66 mm (1.1283 in) |
| Load with valve open | 384 - 432 N (39.2 - 44.1 kg, 86.3 - 97.1 lb) |
Unit: mm (in)
| Items | Limit |
|---|---|
| Squareness | 2.0 (0.079) |
CYLINDER BLOCK
Unit: mm (in)
|
|
||||
| Surface distortion | Standard | Less than 0.03 (0.0012) | ||
| Limit | 0.10 (0.0039) | |||
| Cylinder bore | Main bearing housing inner diameter | Standard | Grade No. 1 | 95.500 - 95.510 (3.7598 - 3.7602) |
| Grade No. 2 | 95.510 - 95.520 (3.7602 - 3.7606) | |||
| Grade No. 3 | 95.520 - 95.530 (3.7606 - 3.7610) | |||
| Wear limit | 0.20 (0.0079) | |||
| Out-of-round | Limit | 0.015 (0.0006) | ||
| Taper (Difference between A and C) | 0.015 (0.0006) | |||
| Main bearing housing inner diameter grade (Without bearing) |
Grade No. A Grade No. B Grade No. C Grade No. D Grade No. E Grade No. F Grade No. G Grade No. H Grade No. J Grade No. K Grade No. L Grade No. M Grade No. N Grade No. P Grade No. R Grade No. S Grade No. T Grade No. U Grade No. V Grade No. W Grade No. X Grade No. Y Grade No. 4 Grade No. 7 |
63.993 - 63.994 (2.5194 - 2.5194) 63.994 - 63.995 (2.5194 - 2.5195) 63.995 - 63.996 (2.5195 - 2.5195) 63.996 - 63.997 (2.5195 - 2.5196) 63.997 - 63.998 (2.5196 - 2.5196) 63.998 - 63.999 (2.5196 - 2.5196) 63.999 - 64.000 (2.5196 - 2.5197) 64.000 - 64.001 (2.5197 - 2.5197) 64.001 - 64.002 (2.5197 - 2.5198) 64.002 - 64.003 (2.5198 - 2.5198) 64.003 - 64.004 (2.5198 - 2.5198) 64.004 - 64.005 (2.5198 - 2.5199) 64.005 - 64.006 (2.5199 - 2.5199) 64.006 - 64.007 (2.5199 - 2.5200) 64.007 - 64.008 (2.5200 - 2.5200) 64.008 - 64.009 (2.5200 - 2.5200) 64.009 - 64.010 (2.5200 - 2.5201) 64.010 - 64.011 (2.5201 - 2.5201) 64.011 - 64.012 (2.5201 - 2.5202) 64.012 - 64.013 (2.5202 - 2.5202) 64.013 - 64.014 (2.5202 - 2.5202) 64.014 - 64.015 (2.5202 - 2.5203) 64.015 - 64.016 (2.5203 - 2.5203) 64.016 - 64.017 (2.5203 - 2.5203) |
||
| Difference in inner diameter between cylinders | Standard | Less than 0.03 (0.0012) | ||

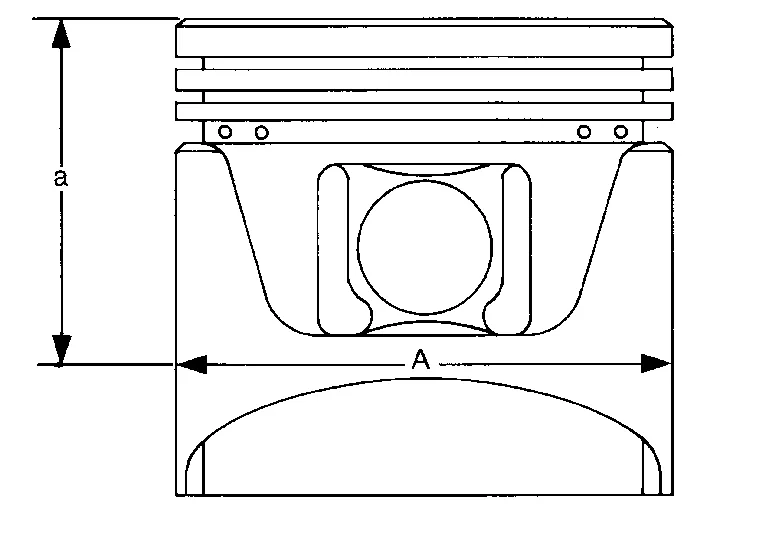

AVAILABLE PISTON
Unit: mm (in)
|
|
|||
| Items | Grade* | Standard | |
| Piston skirt diameter (A) | Grade No. 1 | 95.480 - 95.490 (3.7590 - 3.7594) | |
| Grade No. 2 | 95.490 - 95.500 (3.7594 - 3.7598) | ||
| Grade No. 3 | 95.500 - 95.510 (3.7598 - 3.7602) | ||
| (a) dimension | 38.0 (1.496) | ||
| Piston pin hole diameter | Grade No. 0 | 21.993 - 21.999 (0.8659 - 0.8661) | |
| Grade No. 1 | 21.999 - 22.005 (0.8661 - 0.8663) | ||
| Piston to cylinder bore clearance | 0.010 - 0.030 (0.0004 - 0.0012) | ||
*: Always check with the Parts Department for the latest parts information.
PISTON RING
Unit: mm (in)
| Items | Standard | Limit | |
| Side clearance | Top | 0.045 - 0.080 (0.0018 - 0.0031) | — |
| 2nd | 0.030 - 0.070 (0.0012 - 0.0028) | — | |
| Oil ring | 0.045 - 0.125 (0.0018 - 0.0049) | — | |
| End gap | Top | 0.23 - 028 (0.0091 - 0.0110) | 0.50 (0.0197) |
| 2nd | 0.33 - 0.43 (0.0130 - 0.0169) | 0.62 (0.0244) | |
| Oil (rail ring) | 0.20 - 0.45 (0.0079 - 0.0177) | 0.80 (0.0315) | |
PISTON PIN
Unit: mm (in)
| Items | Grade* | Standard | Limit |
| Piston pin outer diameter | Grade No. 0 | 21.989 - 21.995 (0.8657 - 0.8659) | — |
| Grade No. 1 | 21.995 - 22.001 (0.8659 - 0.8662) | — | |
| Piston to piston pin oil clearance | 0.002 - 0.006 (0.0001 - 0.0002) | — | |
| Connecting rod bushing oil clearance | 0.005 - 0.017 (0.0002 - 0.0007) | 0.030 (0.0012) | |
*: Always check with the Parts Department for the latest parts information.
CONNECTING ROD
Unit: mm (in)
| Center distance | 144.15 - 144.25 (5.68 - 5.68) | |
| Bend [per 100 (3.94)] | Limit | 0.15 (0.0059) |
| Torsion [per 100 (3.94)] | Limit | 0.30 (0.0118) |
| Connecting rod small end inner diameter | 23.980 - 24.000 (0.9441 - (0.9449) | |
| Connecting rod bushing inner diameter2 | Grade No. 0 | 22.000 - 22.006 (0.8661 - 0.8664) |
| Grade No. 1 | 22.006 - 22.012 (0.8664 - 0.8666) | |
| Connecting rod big end diameter (Without bearing) | 55.000 - 55.013 (2.1654 - 2.1659) | |
| Side clearance | Standard | 0.20 - 0.35 (0.0079 - 0.0138) |
| Limit | 0.40 (0.0157) | |
1: Always check with the Parts Department for the latest parts information.
2: After installing in connecting rod.
CRANKSHAFT
Unit: mm (in)
|
|
|
||
| Main journal diameter.(Dm) grade | Standard | Grade1 | Dimension |
|
Grade No. A Grade No. B Grade No. C Grade No. D Grade No. E Grade No. F Grade No. G Grade No. H Grade No. J Grade No. K Grade No. L Grade No. M Grade No. N Grade No. P Grade No. R Grade No. S Grade No. T Grade No. U Grade No. V Grade No. W Grade No. X Grade No. Y Grade No. 4 Grade No. 7 |
59.975 - 59.974 (2.3612 - 2.3612) 59.974 - 59.973 (2.3612 - 2.3611) 59.973 - 59.972 (2.3611 - 2.3611) 59.972 - 59.971 (2.3611 - 2.3611) 59.971 - 59.970 (2.3611 - 2.3610) 59.970 - 59.969 (2.3610 - 2.3610) 59.969 - 59.968 (2.3610 - 2.3609) 59.968 - 59.967 (2.3609 - 2.3609) 59.967 - 59.966 (2.3609 - 2.3609) 59.966 - 59.965 (2.3609 - 2.3608) 59.965 - 59.964 (2.3608 - 2.3608) 59.964 - 59.963 (2.3608 - 2.3607) 59.963 - 59.962 (2.3607 - 2.3607) 59.962 - 59.961 (2.3607 - 2.3607) 59.961 - 59.960 (2.3607 - 2.3606) 59.960 - 59.959 (2.3606 - 2.3606) 59.959 - 59.958 (2.3606 - 2.3605) 59.958 - 59.957 (2.3605 - 2.3605) 59.957 - 59.956 (2.3605 - 2.3605) 59.956 - 59.955 (2.3605 - 2.3604) 59.955 - 59.954 (2.3604 - 2.3604) 59.954 - 59.953 (2.3604 - 2.3603) 59.953 - 59.952 (2.3603 - 2.3603) 59.952 - 59.951 (2.3603 - 2.3603) |
||
| Pin journal diameter. (Dp) grade | Standard | Grade No. 0 | 51.968 - 51.974 (2.0460 - 2.0462) |
| Grade No. 1 | 51.962 - 51.968 (2.0457 - 2.0460) | ||
| Grade No. 2 | 51.956 - 51.962 (2.0445 - 2.0457) | ||
| Center distance (r) | 40.66 - 40.74 (1.6008 - 1.6039) | ||
| Taper [Difference between (A) and (B)] | Limit | Less than 0.002 (0.0001) | |
| Out-of-round [Difference between (X) and (Y)] | Less than 0.002 (0.0001) | ||
| Crankshaft runout [TIR*] | Standard | Less than 0.05 (0.0020) | |
| Limit | 0.10 (0.0039) | ||
| Crankshaft end play | Standard | 0.10 - 0.25 (0.0039 - 0.0098) | |
| Limit | 0.30 (0.0118) | ||
| Fillet role of crankshaft journal | Standard | More than 0.10 (0.0039) | |
*: Total indicator reading

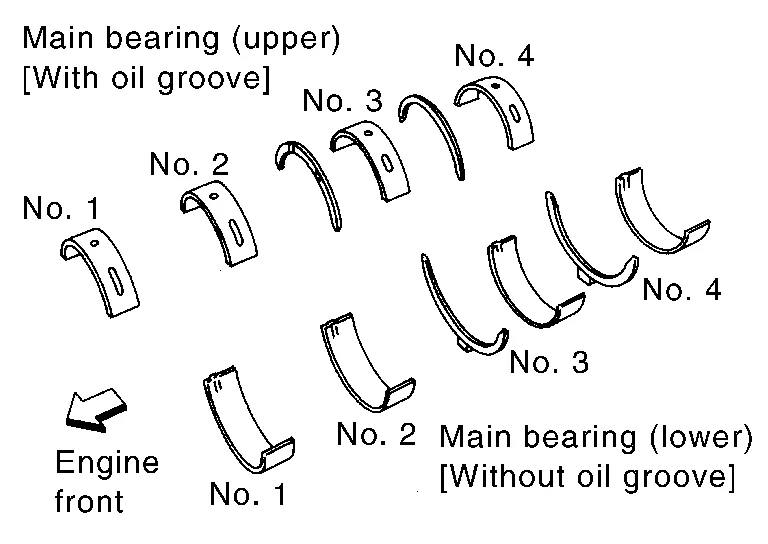

MAIN BEARING
Unit: mm (in)
|
|
|||||
| Grade number* | Thickness | Identification color | Remarks | ||
| 0 | 2.000 - 2.003 (0.0787 - 0.0789) | Black | Grade is the same for upper and lower bearings. | ||
| 1 | 2.003 - 2.006 (0.0789 - 0.0790) | Brown | |||
| 2 | 2.006 - 2.009 (0.0790 - 0.0791) | Green | |||
| 3 | 2.009 - 2.012 (0.0791 - 0.0792) | Yellow | |||
| 4 | 2.012 - 2.015 (0.0792 - 0.0793) | Blue | |||
| 5 | 2.015 - 2.018 (0.0793 - 0.0794) | Pink | |||
| 6 | 2.018 - 2.021 (0.0794 - 0.0796) | Purple | |||
| 7 | 2.021 - 2.024 (0.0796 - 0.0797) | White | |||
| 01 | UPR | 2.003 - 2.006 (0.0789 - 0.0790) | Brown | Grade and color are different for upper and lower bearings. | |
| LWR | 2.000 - 2.003 (0.0787 - 0.0789) | Black | |||
| 12 | UPR | 2.006 - 2.009 (0.0790 - 0.0791) | Green | ||
| LWR | 2.003 - 2.006 (0.0789 - 0.0790) | Brown | |||
| 23 | UPR | 2.009 - 2.012 (0.0791 - 0.0792) | Yellow | ||
| LWR | 2.006 - 2.009 (0.0790 - 0.0791) | Green | |||
| 34 | UPR | 2.012 - 2.015 (0.0792 - 0.0793) | Blue | ||
| LWR | 2.009 - 2.012 (0.0791 - 0.0792) | Yellow | |||
| 45 | UPR | 2.015 - 2.018 (0.0793 - 0.0794) | Pink | ||
| LWR | 2.012 - 2.015 (0.0792 - 0.0793) | Blue | |||
| 56 | UPR | 2.018 - 2.021 (0.0794 - 0.0796) | Purple | ||
| LWR | 2.015 - 2.018 (0.0793 - 0.0794) | Pink | |||
| 67 | UPR | 2.021 - 2.024 (0.0796 - 0.0797) | White | ||
| LWR | 2.018 - 2.021 (0.0794 - 0.0796) | Purple | |||
*: Always check with the Parts Department for the latest parts information.
UNDERSIZE
Unit: mm (in)
| Items | Thickness | Main journal diameter |
| 0.25 (0.0098) | 2.132 - 2.140 (0.0839 - 0.0843) | Grind so that bearing clearance is the specified value. |
MAIN BEARING OIL CLEARANCE
Unit: mm (in)
| Items | Standard | Limit |
| Main bearing oil clearance | 0.012 - 0.022 (0.0005 - 0.0009)* | 0.065 (0.0026) |
*: Actual clearance
CONNECTING ROD BEARING
Unit: mm (in)
| Grade number* | Thickness | Identification color (mark) |
| 0 | 1.500 - 1.503 (0.0591 - 0.0592) | Black |
| 1 | 1.503 - 1.506 (0.0592 - 0.0593) | Brown |
| 2 | 1.506 - 1.509 (0.0593 - 0.0594) | Green |
*: Always check with the Parts Department for the latest parts information.
UNDERSIZE
Unit: mm (in)
| Items | Thickness | Crank pin journal diameter (Dp) |
| 0.25 (0.0098) | 1.626 - 1.634 (0.0640 - 0.0643) | Grind so that bearing clearance is the specified value. |
CONNECTING ROD BEARING OIL CLEARANCE
Unit: mm (in)
| Items | Standard | Limit |
| Connecting rod bearing oil clearance | 0.020 - 0.045 (0.0008 - 0.0018)* | 0.070 (0.0028) |
*: Actual clearance
Unit: mm (in)
| Drive plate runout [TIR]* - on torque converter mount surface | Less than 0.35 (0.0138) |
| Drive plate runout [TIR]* - on ring gear | 0.5 (0.0197) |
*: Total indicator reading
Engine Mechanical :: Unit Disassembly and Assembly. Cylinder Block
Exploded View
1.
Reinforcement plate
2.
Drive plate
3.
Rear oil seal retainer
4.
Rear oil seal
5.
Sub harness
6.
Knock sensor
7...
Engine Lubrication System :: Precaution. Precautions
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...
Other information:
Nissan Murano (Z52) 2015-2024 Service Manual: Abs Actuator and Electric Unit (control Unit)
Exploded View 1. ABS actuator and electric unit (control unit) 2. Bracket A. To rear (RH) brake caliper. Refer to Exploded View. B. From master cylinder secondary side. Refer to Exploded View. C. Refer to Removal and Installation. D...
Nissan Murano (Z52) 2015-2024 Service Manual: Srs Air Bag Warning Lamp Does Not Turn on
Air Bag Warning Lamp Does Not Turn On CHECK METER FUSE Check the 5A fuse [No. 31, located in the fuse block (J/B)]. Is the fuse blown? YES>> GO TO 2. NO>> GO TO 3. REPLACE METER FUSE AND CHECK AGAIN Replace 5A fuse [No. 31, located in the fuse block (J/B)] and place ignition switch in the ON position...
Categories
- Manuals Home
- Nissan Murano Owners Manual
- Nissan Murano Service Manual
- Jacking up vehicle and removing the damaged tire
- Rear bench seat adjustment
- Tire rotation
- New on site
- Most important about car
