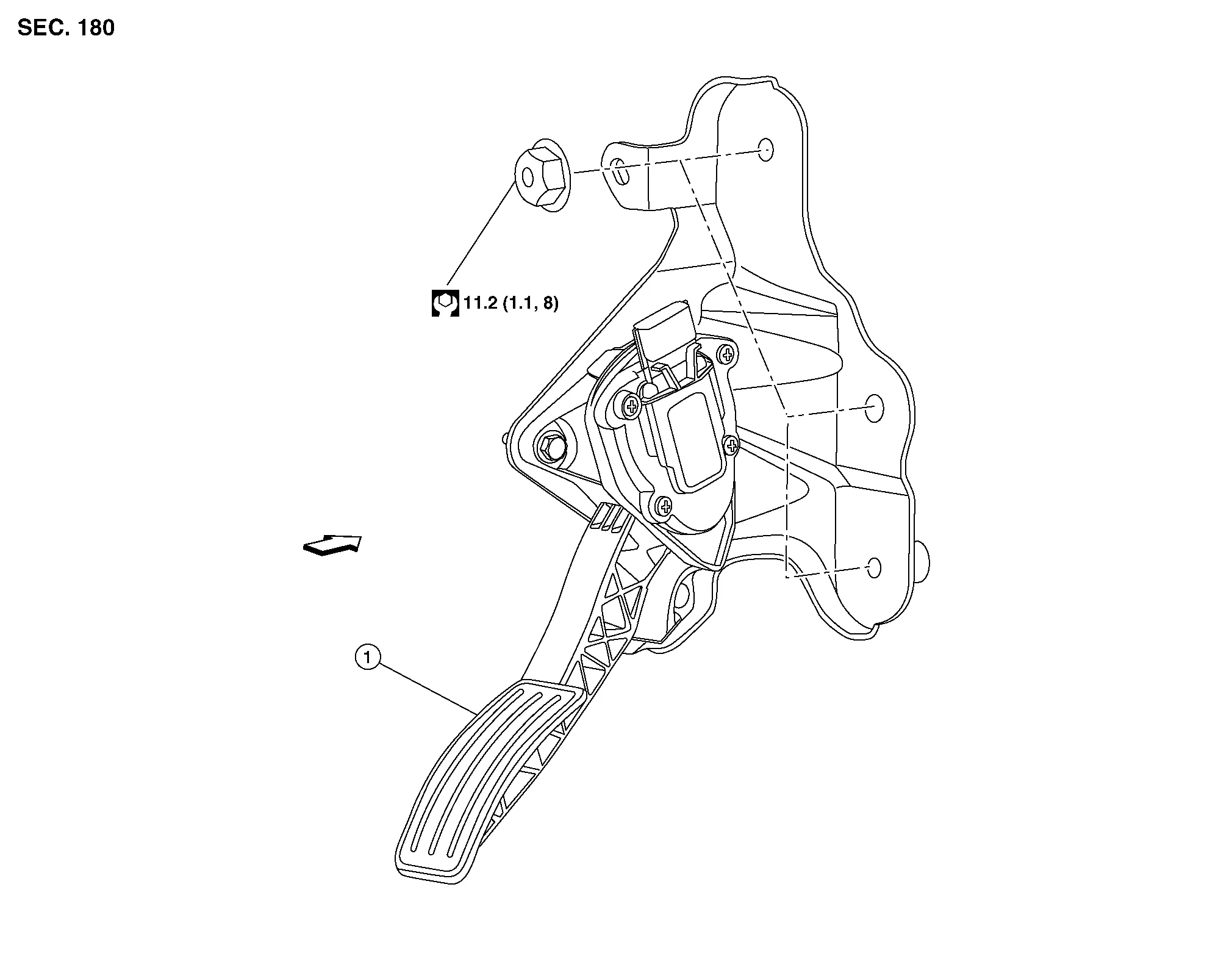

Exploded View

Accelerator pedal assembly

Front

Removal and Installation

REMOVAL

Remove accelerator pedal assembly nuts.

Disconnect harness connector from the accelerator pedal assembly.

Remove the accelerator pedal assembly from Nissan Murano vehicle.

CAUTION:

Do not disassemble accelerator pedal assembly.

Do not drop or impact accelerator pedal assembly.

Do not expose accelerator pedal assembly to water.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

For inspection, refer to Inspection.

Inspection

Check that the accelerator pedal moves smoothly within the specified range.

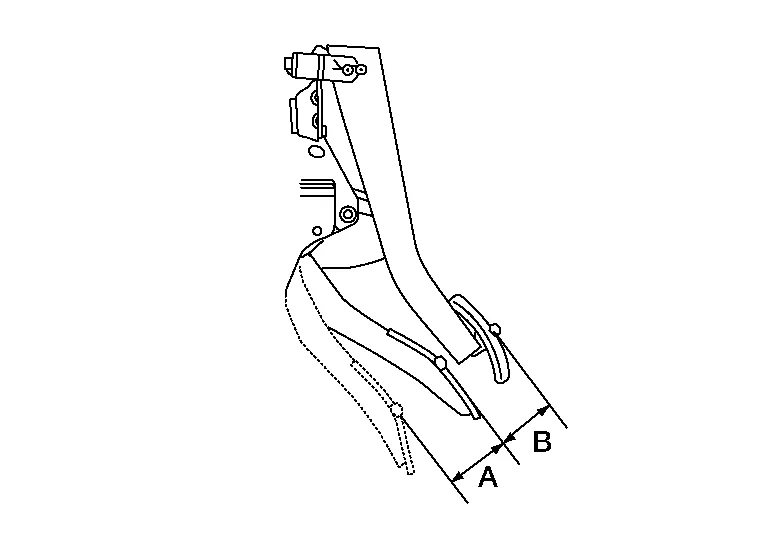

Accelerator pedal stroke (A)

: Refer to Accelerator Control.

Check the pedal height difference between accelerator and brake.

Pedal height difference between accelerator and brake (B)

: Refer to Accelerator Control.

If accelerator pedal does not meet specified values, check brake pedal height. Refer to Inspection.

Depress and release the accelerator pedal to check that it returns quickly and smoothly to the original released position.

CAUTION:

Whenever the harness connector of the accelerator pedal position sensor has been disconnected, perform "Accelerator Pedal Released Position Learning". Refer to Description.

The accelerator pedal should operate smoothly without catching when the pedal operating force is released. The pedal should return smoothly to the fully raised position. The spring should be free from damage.

Accelerator Control System :: Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...

Accelerator Control System :: Service Data and Specifications (sds). Service Data and Specifications (sds)

Accelerator Control Unit: mm (in) Accelerator pedal stroke (A) 50.5 - 53.5 (1.99 -2.11) Pedal height difference between accelerator and brake (B) 35...
